ESP32 Chip Naming Rules

ESP32芯片命名规则

产品型号和订购信息

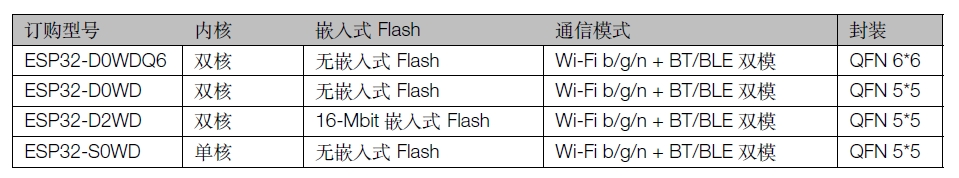

ESP32芯片型号一览

订购信息

ESP32官方模组使用芯片一览

===================	============	===========	=========	====	===============
Module	Chip	Flash, MB	PSRAM, MB	Ant.	Dimensions, mm
===================	==========	===========	=========	====	===============
ESP32-WROOM-32	ESP32-D0WDQ6	4	--	MIFA	18 × 25.5 × 3.1
ESP32-WROOM-32D	ESP32-D0WD	4, 8, or 16	--	MIFA	18 × 25.5 × 3.1
ESP32-WROOM-32U	ESP32-D0WD	4, 8, or 16	--	U.FL	18 × 19.2 × 3.1
ESP32-SOLO-1	ESP32-S0WD	4	--	MIFA	18 × 25.5 × 3.1
ESP32-WROVER (PCB)	ESP32-D0WDQ6	4	8	MIFA	18 × 31.4 × 3.3
ESP32-WROVER (IPEX)	ESP32-D0WDQ6	4	8	U.FL	18 × 31.4 × 3.3
ESP32-WROVER-B	ESP32-D0WD	4, 8, or 16	8	MIFA	18 × 31.4 × 3.3
ESP32-WROVER-IB	ESP32-D0WD	4, 8, or 16	8	U.FL	18 × 31.4 × 3.3
===================	============	===========	=========	====	===============

• MIFA - 蛇形倒 F 天线；

• U.FL - U.FL/IPEX 天线连接器；
